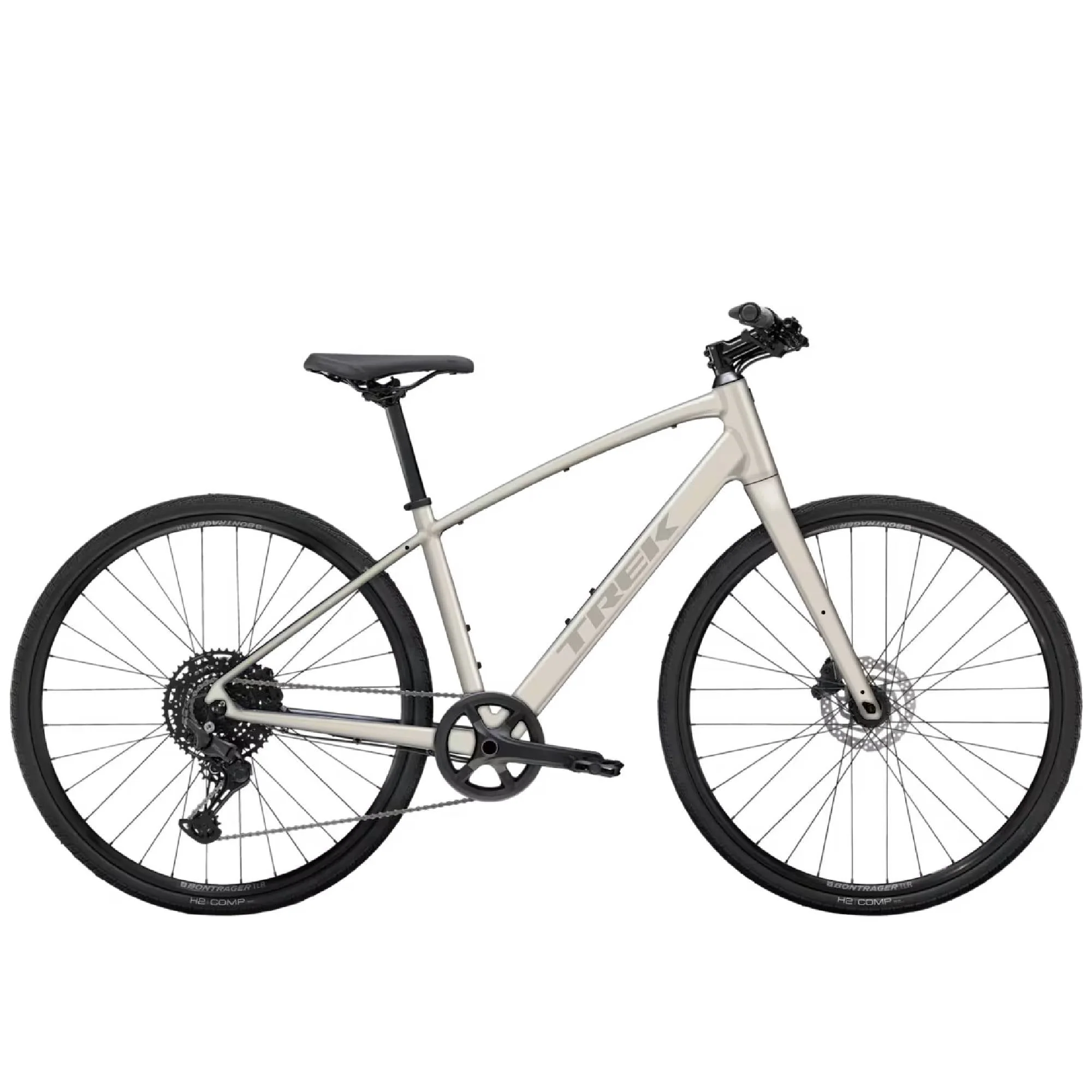

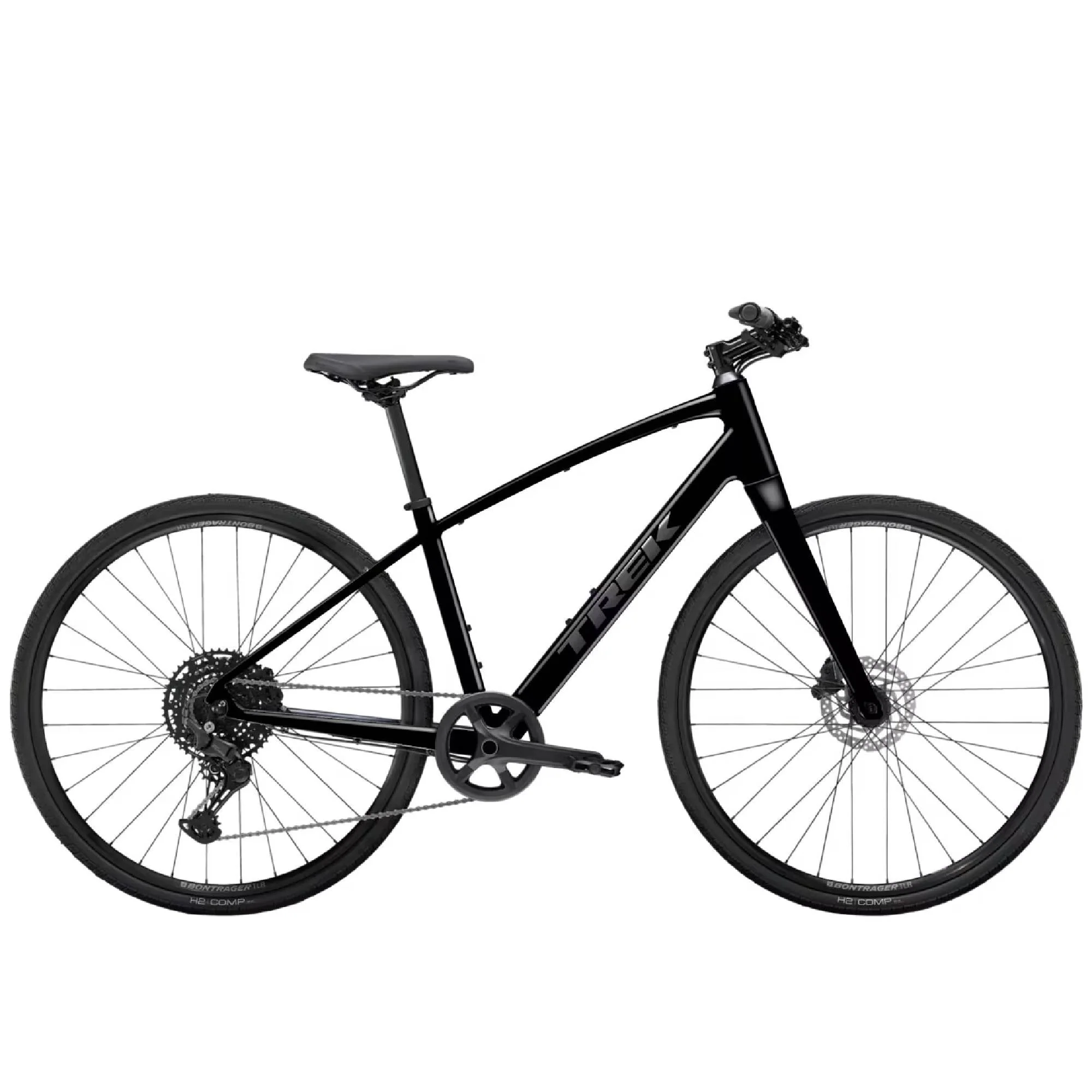

Trek FX 1 Stepover Gen 4 Bike

FRAMESET
FRAME	Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
FORK	FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR

WHEELS
HUB FRONT	Formula DC-20, alloy, 6-bolt, 100x5mm
SKEWER FRONT	139x5mm bolt-on
HUB REAR	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
SKEWER REAR	152x5mm QR
TIRE	Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm

DRIVETRAIN
SHIFTER	Size: XS, S, M, L, XL - Shimano EF500, 8 speed Size: XS, S, M, L, XL - Shimano EF500, 2 speed
FRONT DERAILLEUR	Shimano Tourney TY606, 31.8/34.9mm clamp, top swing, dual pull
REAR DERAILLEUR	Shimano Acera M3020-8, 40T max cog
CRANK	Forged alloy, 46/30, 170mm length
BOTTOM BRACKET	Sealed cartridge, 68mm
CASSETTE	Shimano HG200, 12-32, 8 speed
CHAIN	KMC Z8.3
PEDAL	Wellgo nylon platform

COMPONENTS
SADDLE	Bontrager Sport
*SEATPOST	Size: XS, S, M - Bontrager alloy, 27.2mm, 12mm offset, 330mm length Size: L, XL - Bontrager alloy, 27.2mm, 12mm offset, 400mm length
*HANDLEBAR	Size: XS, S, M, L - Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width Size: XL - Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width
GRIPS	Trek Ergonomic Comp, lock-on
*STEM	Size: XS, S, M - Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length Size: L, XL - Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
BRAKE	Tektro MD-U310 mechanical disc
BRAKE ROTOR	Tektro wave, 6-bolt, 160mm

WEIGHT
WEIGHT	M - 13.00 kg / 28.67 lbs
WEIGHT LIMIT	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

⚠️

Parts may be substituted at any time without notice by the manufacturer. An equivalent quality part may be used based on availability or yearly model.
